SMKS-B500

  • Height

    2305 mm

  • Width

    1200 mm

  • Depth

    1000 mm

  • Weight

    1.5 T

  • Remarks

    Specific parameters based on the actual product

  • Table Height

    1050 mm

  • Fixture Operation Height

    260 mm

  • Clamp Operation Width

    500 mm

  • Grinding Medium Cylinder Tank Diameter

    O102 mm

  • Capacity Of Grinding Medium Tank

    3 KG

  • Operation Panel

    Tpuch screen

  • Control Circuit

    PLC

  • Processing Pressure (adjustable)

    1~14 Mpa

  • Motor Power

    3 HP

  • Machine Voltage

    380 / 3PH

* Specifications can be customized according to customer's product requirements.

SMKS-B600

  • Height

    2350 mm

  • Width

    1300 mm

  • Depth

    1200 mm

  • Weight

    1.75 T

  • Remarks

    Specific parameters based on the actual product

  • Table Height

    1080 mm

  • Fixture Operation Height

    380 mm

  • Clamp Operation Width

    700 mm

  • Grinding Medium Cylinder Tank Diameter

    O152 mm

  • Capacity Of Grinding Medium Tank

    8 KG

  • Operation Panel

    Tpuch screen

  • Control Circuit

    PLC

  • Processing Pressure (adjustable)

    1~14 Mpa

  • Motor Power

    5 HP

  • Machine Voltage

    380 / 3PH

* Specifications can be customized according to customer's product requirements.

SMKS-B800

  • Height

    2550 mm

  • Width

    3200 mm

  • Depth

    1400 mm

  • Weight

    2.5 T

  • Remarks

    Specific parameters based on the actual product

  • Table Height

    1150 mm

  • Fixture Operation Height

    310 mm

  • Clamp Operation Width

    800 mm

  • Grinding Medium Cylinder Tank Diameter

    O252 mm

  • Capacity Of Grinding Medium Tank

    25 KG

  • Operation Panel

    Tpuch screen

  • Control Circuit

    PLC

  • Processing Pressure (adjustable)

    1~18 Mpa

  • Motor Power

    10 HP

  • Machine Voltage

    380 / 3PH

* Specifications can be customized according to customer's product requirements.

SMKS-1050

  • Height

    2600 mm

  • Width

    3500 mm

  • Depth

    1500 mm

  • Weight

    3.5 T

  • Remarks

    Specific parameters based on the actual product

  • Table Height

    1150 mm

  • Fixture Operation Height

    450 mm

  • Clamp Operation Width

    850 mm

  • Grinding Medium Cylinder Tank Diameter

    O352 mm

  • Capacity Of Grinding Medium Tank

    45 KG

  • Operation Panel

    Tpuch screen

  • Control Circuit

    PLC

  • Processing Pressure (adjustable)

    1~18 Mpa

  • Motor Power

    15 HP

  • Machine Voltage

    380 / 3PH

* Specifications can be customized according to customer's product requirements.

SMKS-1300

  • Height

    2600 mm

  • Width

    4500 mm

  • Depth

    2000 mm

  • Weight

    4.5 T

  • Remarks

    Specific parameters based on the actual product

  • Table Height

    1150 mm

  • Fixture Operation Height

    650 mm

  • Clamp Operation Width

    1050 mm

  • Grinding Medium Cylinder Tank Diameter

    O552 mm

  • Capacity Of Grinding Medium Tank

    90 KG

  • Operation Panel

    Tpuch screen

  • Control Circuit

    PLC

  • Processing Pressure (adjustable)

    1~22 Mpa

  • Motor Power

    20 HP

  • Machine Voltage

    380 / 3PH

* Specifications can be customized according to customer's product requirements.

SMKS-B601

  • Height

    2300 mm

  • Width

    1250 mm

  • Depth

    1200 mm

  • Weight

    1.5 T

  • Remarks

    Specific parameters based on the actual product



  • Table Height

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.

  • Fixture Operation Height

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.

  • Clamp Operation Width

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.

  • Grinding Medium Cylinder Tank Diameter

    O152 mm

  • Capacity Of Grinding Medium Tank

    10 KG

  • Operation Panel

    Tpuch screen

  • Control Circuit

    PLC

  • Processing Pressure (adjustable)

    1~14 Mpa

  • Motor Power

    3 HP

  • Machine Voltage

    380 / 3PH

* Specifications can be customized according to customer's product requirements.

SMKS-B701

  • Height

    2350 mm

  • Width

    1350 mm

  • Depth

    1200 mm

  • Weight

    1.8 T

  • Remarks

    Specific parameters based on the actual product




  • Table Height

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.


  • Fixture Operation Height

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.

  • Clamp Operation Width

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.

  • Grinding Medium Cylinder Tank Diameter

    O202 mm

  • Capacity Of Grinding Medium Tank

    20 KG

  • Operation Panel

    Tpuch screen

  • Control Circuit

    PLC

  • Processing Pressure (adjustable)

    1~14 Mpa

  • Motor Power

    5 HP

  • Machine Voltage

    380 / 3PH

* Specifications can be customized according to customer's product requirements.

SMKS-B801

  • Height

    2500 mm

  • Width

    3000 mm

  • Depth

    1300 mm

  • Weight

    2.3 T

  • Remarks

    Specific parameters based on the actual product




  • Table Height

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.


  • Fixture Operation Height

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.

  • Clamp Operation Width

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.

  • Grinding Medium Cylinder Tank Diameter

    O252 mm

  • Capacity Of Grinding Medium Tank

    50 KG

  • Operation Panel

    Tpuch screen

  • Control Circuit

    PLC

  • Processing Pressure (adjustable)

    1~18 Mpa

  • Motor Power

    10 HP

  • Machine Voltage

    380 / 3PH

* Specifications can be customized according to customer's product requirements.

SMKS-1051

  • Height

    2650 mm

  • Width

    3500 mm

  • Depth

    2350 mm

  • Weight

    2.8 T

  • Remarks

    Specific parameters based on the actual product




  • Table Height

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.


  • Fixture Operation Height

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.

  • Clamp Operation Width

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.

  • Grinding Medium Cylinder Tank Diameter

    O352 mm

  • Capacity Of Grinding Medium Tank

    90 KG

  • Operation Panel

    Tpuch screen

  • Control Circuit

    PLC

  • Processing Pressure (adjustable)

    1~18 Mpa

  • Motor Power

    15 HP

  • Machine Voltage

    380 / 3PH

* Specifications can be customized according to customer's product requirements.

SMKS-1301

  • Height

    2650 mm

  • Width

    4000 mm

  • Depth

    2350 mm

  • Weight

    3.6 T

  • Remarks

    Specific parameters based on the actual product




  • Table Height

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.


  • Fixture Operation Height

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.

  • Clamp Operation Width

    Specific parameters according to the material.
    According to the product demand is equipped with special step operating platform and operation platform.

  • Grinding Medium Cylinder Tank Diameter

    O552 mm

  • Capacity Of Grinding Medium Tank

    150 KG

  • Operation Panel

    Tpuch screen

  • Control Circuit

    PLC

  • Processing Pressure (adjustable)

    1~22 Mpa

  • Motor Power

    20 HP

  • Machine Voltage

    380 / 3PH

* Specifications can be customized according to customer's product requirements.

SMKS-602

  • Height

    2300 mm

  • Width

    800 mm

  • Depth

    1800 mm

  • Weight

    1.5 T

  • Remarks



  • Table Height

    1000 mm

  • Table Width

    400 mm

  • Abrasive Cylinder Volume

    10.0 inch \ liter

  • Remarks

    Specific parameters according to the material

* Specifications can be customized according to customer's product requirements.

SMKS-802

  • Height

    2300 mm

  • Width

    1200 mm

  • Depth

    1900 mm

  • Weight

    2.1 T

  • Remarks



  • Table Height

    1000 mm

  • Table Width

    450 mm

  • Abrasive Cylinder Volume

    18.0 inch \ liter

  • Remarks

    Specific parameters according to the material

* Specifications can be customized according to customer's product requirements.

SMKS-1002

  • Height

    2300 mm

  • Width

    1800 mm

  • Depth

    2000 mm

  • Weight

    2.6 T

  • Remarks



  • Table Height

    1000 mm

  • Table Width

    500 mm

  • Abrasive Cylinder Volume

    26.0 inch \ liter

  • Remarks

    Specific parameters according to the material

* Specifications can be customized according to customer's product requirements.

SMKS-XF608

  • Height

    2200 mm

  • Width

    1800 mm

  • Depth

    1500 mm

  • Weight

    1.8 T

  • Remarks

    Specific parameters according to the material

  • Operation Panel

    Tpuch Screen

  • Control Circuit

    PLC

  • Processing Pressure (adjustable)

    0~14 Mpa

  • Traffic (adjustable)

    0~10 M3

  • Motor Power

    25 HP

* Specifications can be customized according to customer's product requirements.

SMKS-XF808

  • Height

    2400 mm

  • Width

    2000 mm

  • Depth

    1500 mm

  • Weight

    2.2 T

  • Remarks

    Specific parameters according to the material

  • Operation Panel

    Tpuch Screen

  • Control Circuit

    PLC

  • Processing Pressure (adjustable)

    0~18 Mpa

  • Traffic (adjustable)

    0~20 M3

  • Motor Power

    30 HP

* Specifications can be customized according to customer's product requirements.

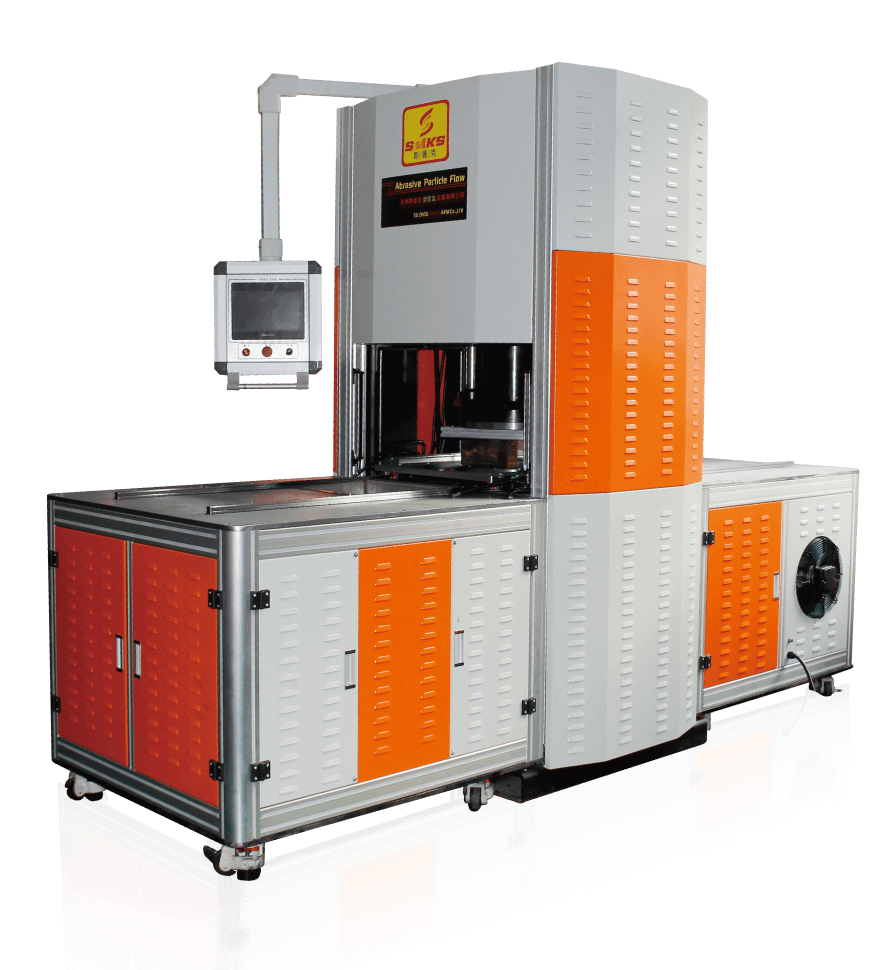

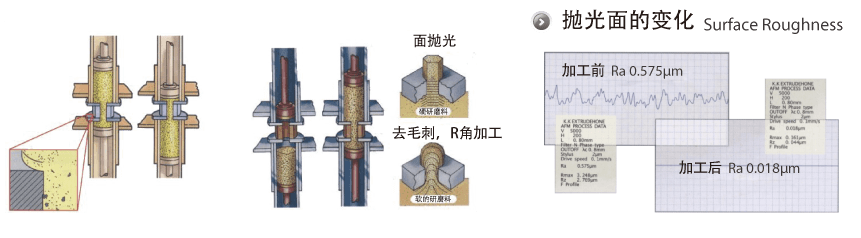

Two Way Circulating De-Burring Machine

Introduction >>>

The machine equipped with a hydraulic cylinder, pumps the abrasive fluid up and down through the part to be processed to achieve polishing on the surface through an inner hole, burring and chamfering. A mirror surf is achieved by the circulating polishing fluid and is especially suitable for concave and convex surfaces and complex curved channels. Most suitable for gas and liquid fluid conduction tube.The method effectively improves the performance of the die or workpiece and achieves a bright and clean surface, the processed surface roughness can reach Ra0.025 ~ Ra0.01 microns.

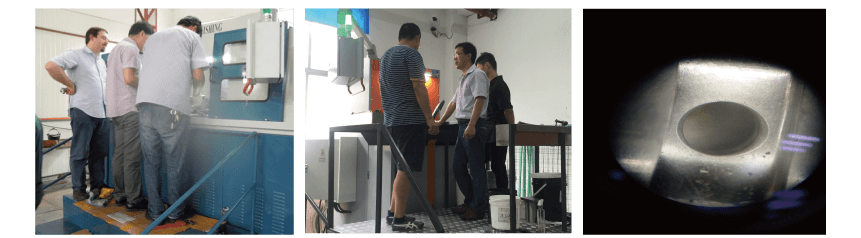

One Way Automatic Circulating De-Burring Machine

Introduction >>>

The technology of the one way AFM is designed for plastic injection moulds, hot nozzle, hot runner, long tube and bent pipe products. The PLC can control the polishing automatically to economically improve the polishing effects
This process is suitable for concave and convex surfaces, curved channels, irregular shape and micro holes and can meet any other complex shapes,
In order to meet customer demand we are not only providing the abrasive flow machines, but also provide services for customers who need polishing of hot runner systems, we can decrease the roughness in a few minutes and achieve a level of Ra < 0.01 microns.

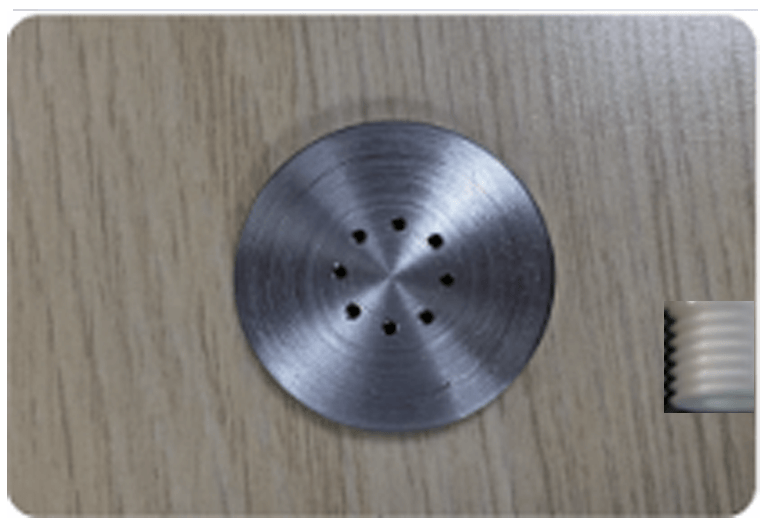

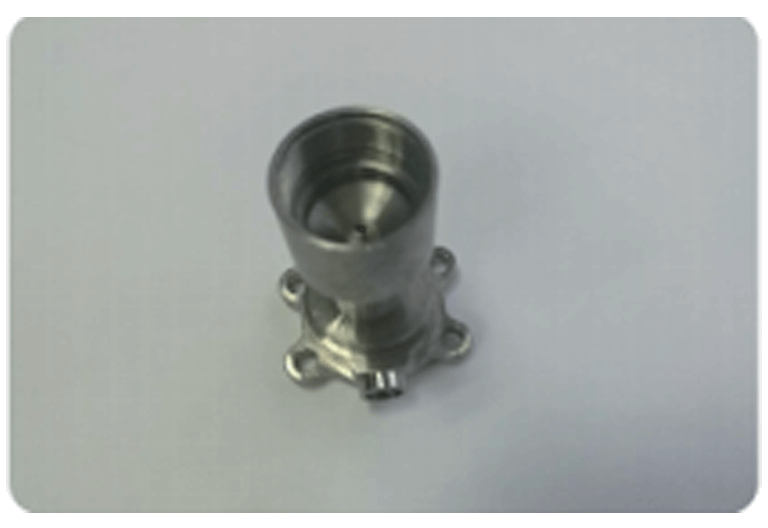

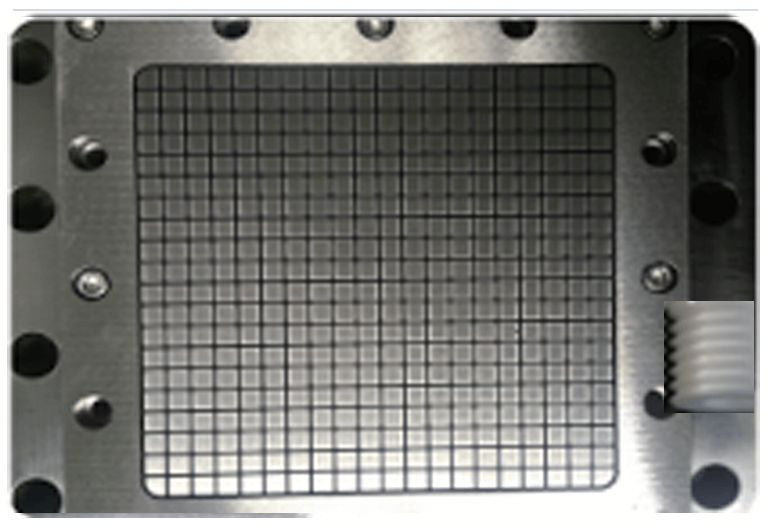

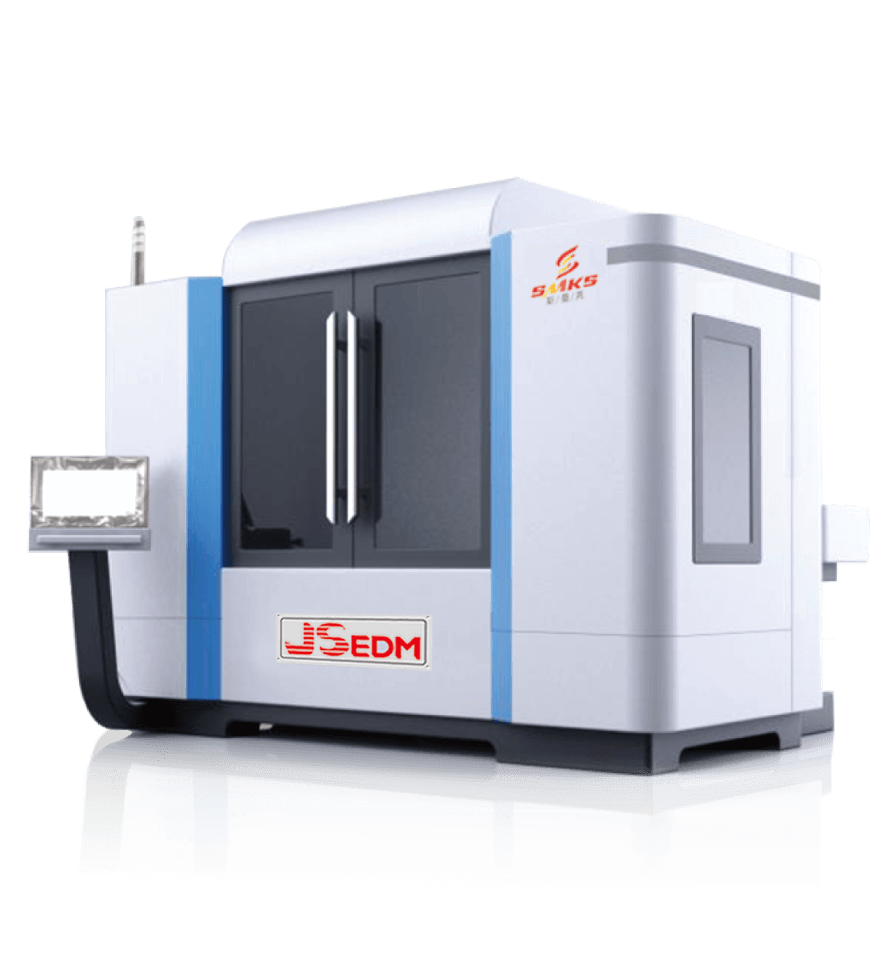

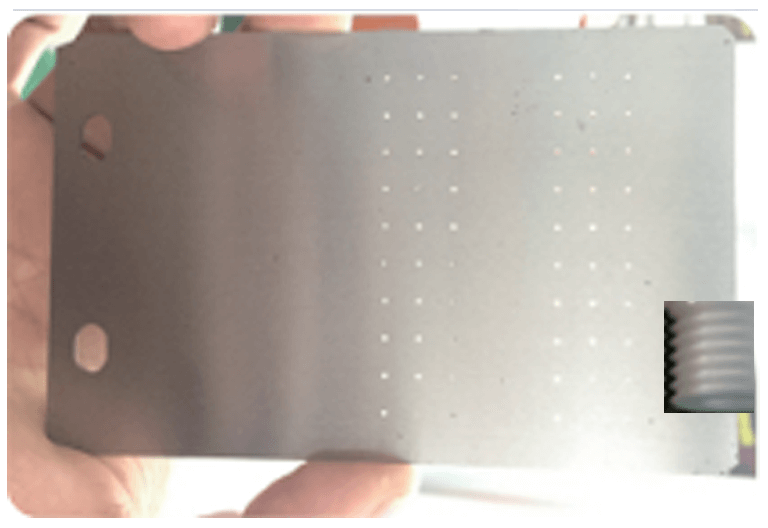

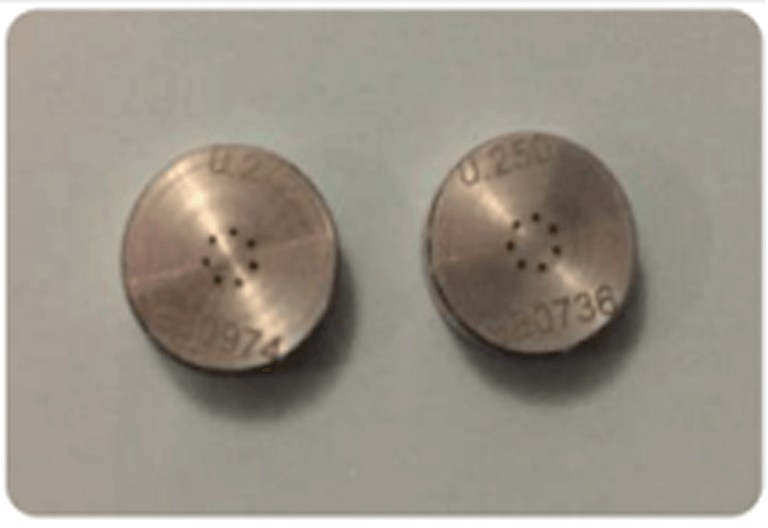

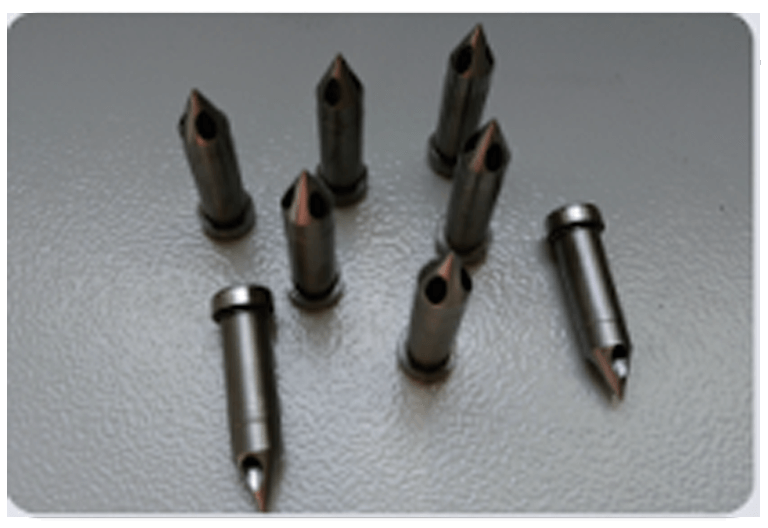

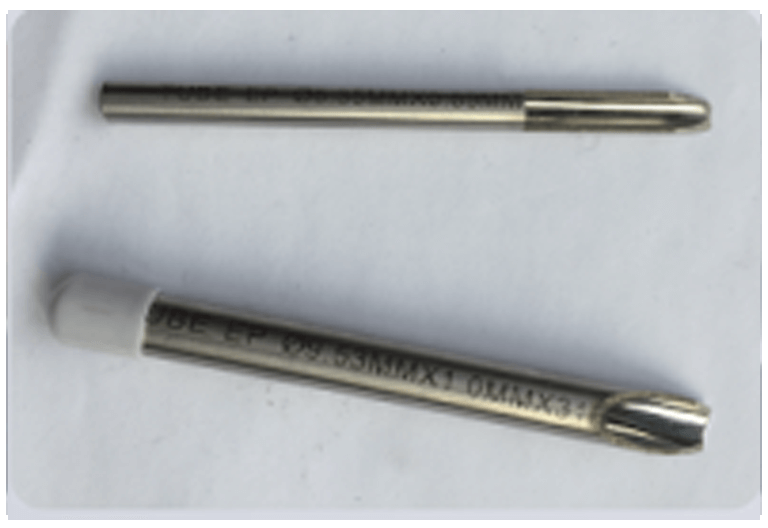

Micro Hole Abrasive Flow Polishing Machine

Introduction >>>

The principal of the Micro hole abrasive flow is similar to the one-way abrasive flow polishing process, the main difference is that micro hole abrasive polishing machine uses a low viscosity fluid medium and smaller abrasive particles, lighter liquid keeps the consistency of the viscosity and keep the grinding effect uniformly distributed.
The abrasives can flow through the holes or pores to remove tiny burrs, improving surface quality of the pressure cavity.This style of abrasive flow polishing machine is designed for fuel or oil mist nozzles sprinkler nozzles and hydraulic valves.The process can improve the fuel atomization, improve engine performance, and reduce emissions.

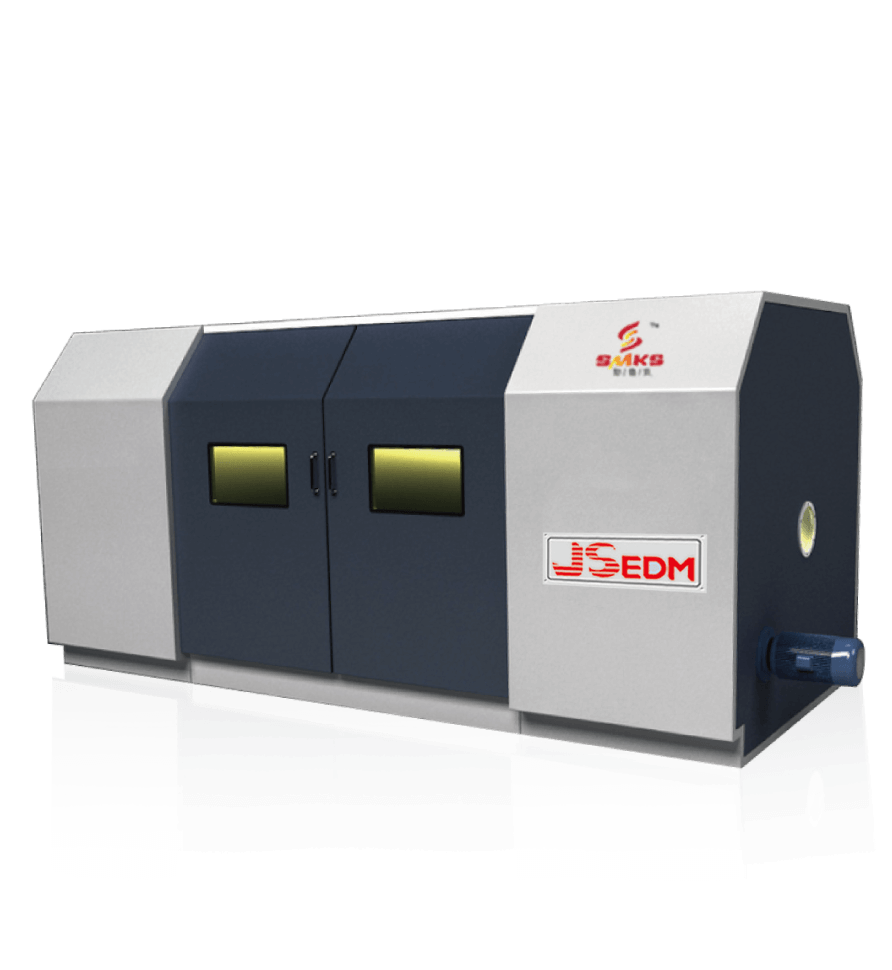

Suspended Abrasive DE-Burring Machine

Introduction >>>

Abrasive de-burring is an advanced de-burring technology.The use of pressurised liquid and a special mixture of special high speed abrasive fluid is forced through the fluid system to achieve shear impact. The process parameters such as pressure, angle and injection time are controlled by PLC to control the surface roughness of the workpiece and achieve the effect of polishing and de-burring, the formula will not leave abrasive residue on the workpiece,
Four classes of Commonly used abrasives are oxide, carbide, high and soft abrasive materials. Different types of abrasive the polishing effect is different, each has its scope of application. The material hardness of the polishing particles should be higher than the workpiece material hardness, so as to polish the object to be processed.Secondly, to ensure that the abrasive particles in the grinding fluid maintain a certain degree of chemical stability and to avoid chemical reaction. The higher the abrasive concentration suspended in the polishing solution, the material removal rate is increased accordingly. To increase the concentration a portion of the suspending agent may be added to the polishing solution. A small amount of anti-rust agent can be added to polishing medium.

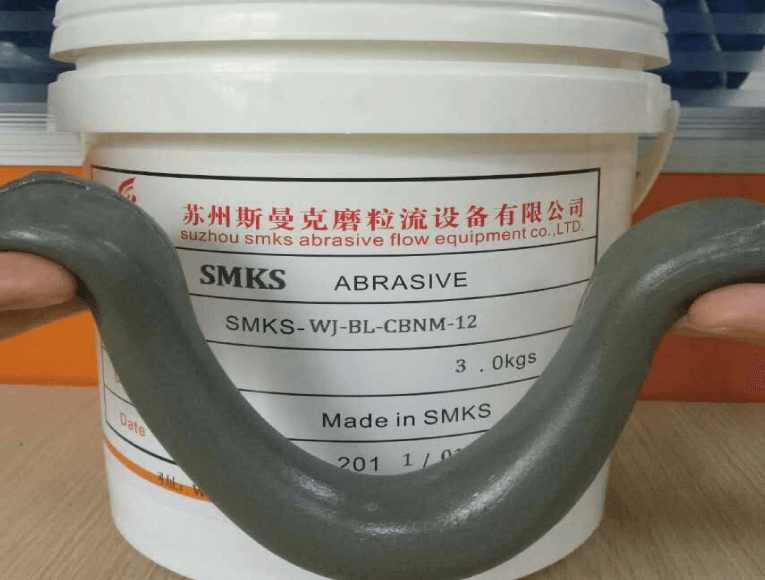

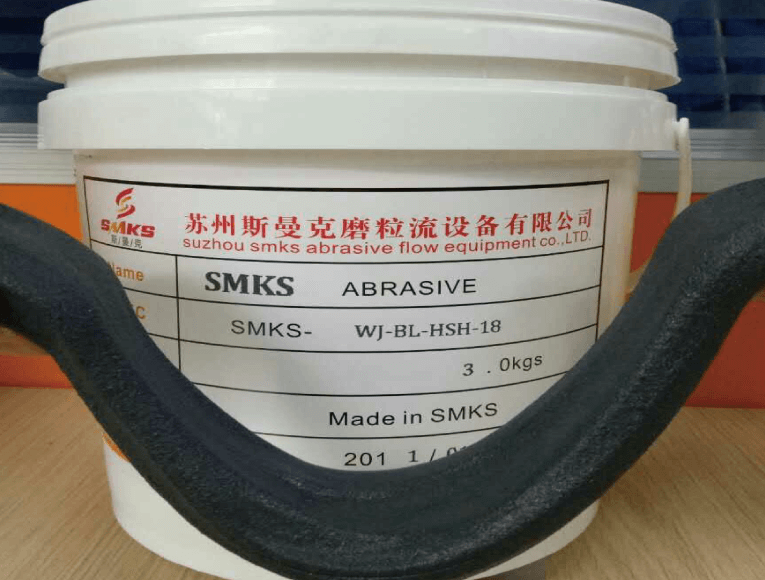

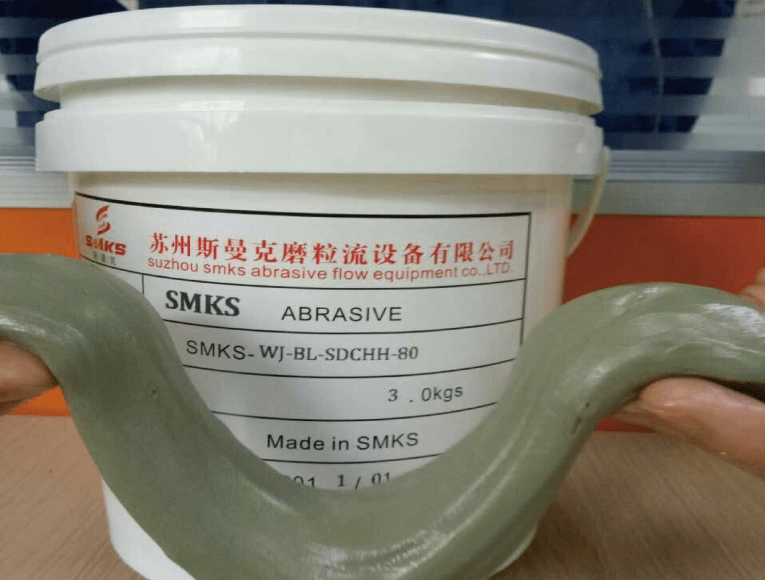

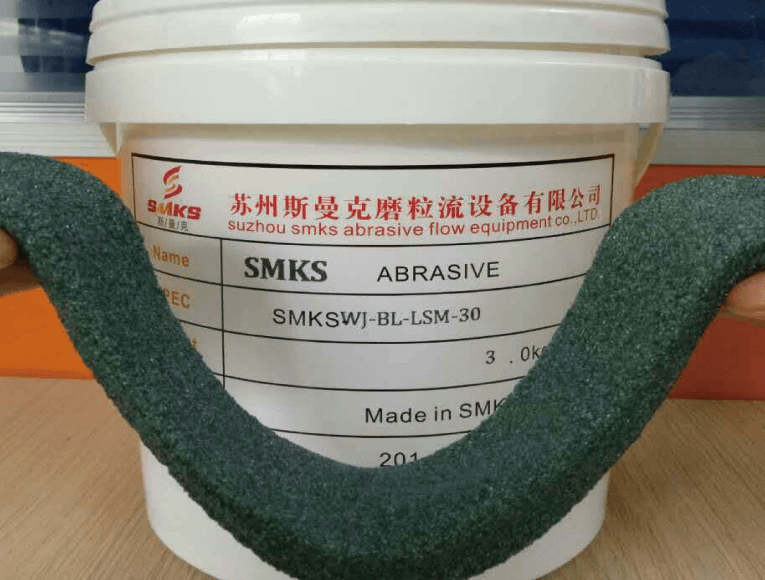

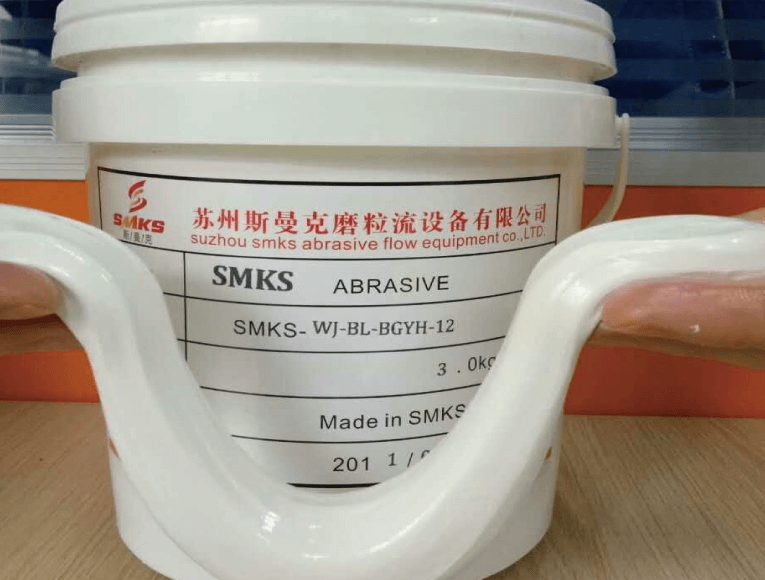

Polymer Elastic Soft Abrasive

  • The polymer elastic soft abrasive, micro pore oily abrasive and suspended abrasives are all special high-density molecular polymer elastic materials used for a combination of grinding applications.The Polymer structure of these elastic soft abrasives has strong expanse ability, strong adhesion to the grinding medium and helps to improve grinding efficiency.
  • The soft abrasive can work with high and low hardness tungsten steel, alloy steel, copper, aluminium, nonmetal materials such as ceramics, glass, especially effective for inner hole or outside surfaces.
Purpose
  • SDC Diamond Soft Abrasive (Micro Hardness Of About 10000kg/mm2)
  • CBN Diamond Soft Abrasive (Micro Hardness Of About 7200kg/mm2)
  • Boron Carbide Soft Abrasive (Micro Hardness Of About 4500kg/mm2)
  • Green Silicon E Soft Abrasive (Micro Hardness Of About 3320kg/mm2)
  • Black Silicon Soft Abrasive (Micro Hardness Of About 2840kg/mm2)
  • Brown And White Corundum Soft Abrasive (Micro Hardness Of About 2000kg/mm2 )
  • Oil/water Liquid Abrasive (Micro hardness According To Workpiece Material Configuration)
  • Silicon Carbide -(S)The most popular abrasive which is hard ,durable and competitive on price
  • Aluminium Oxide -(A)
    We add inert material(aluminum oxide ) into the abrasive ,when we polish high-nickel , heat-resistant materials ,eg.stainless steel airplane engine blades
  • Boron Carbide -(B)
    It is harder than silicon carbide , use it when polishing speed with using silicon carbide media is too slow. eg.when polish hardened tool steel,cobalt steel ,or stainless steel containing Nickel.
  • Diamond Powder -(D)
    It is especially for hard alloy materials like tungsten steel.
Particle Size Series

The particle size of the hard medium , is measured by the Taylor sieve system:

Particle size (mesh) 46 60 80 120 180 w20 w10 w3.5 w0.5
Particle (mesh) 422-355 320-250 212-180 125-106 90-63 20-14 10-7 3.5 0.5
Remarks There are three factors that need to be considered in grain size selection:
The first is the minimum gap of the processed parts. Size should be less than the section gap 1/5;
Second is the grinding efficiency, large size, high efficiency;
hird is the surface roughness of the grinding surface, the more coarse particles, The greater the grinding surface roughness;

Product Display

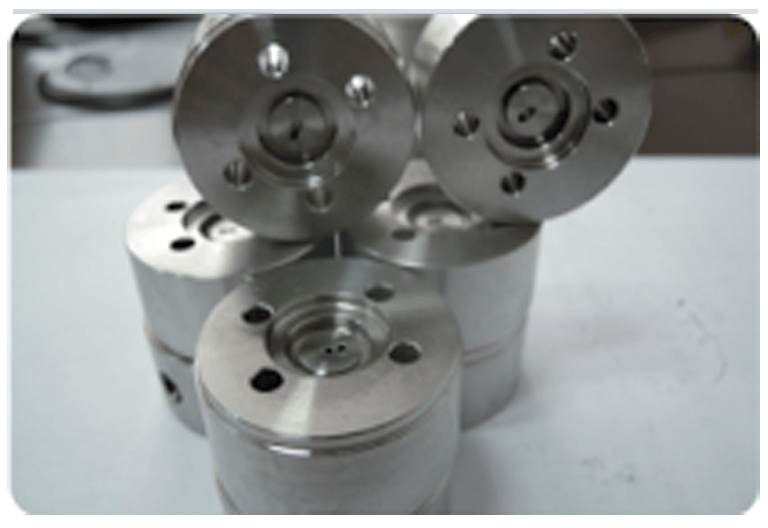

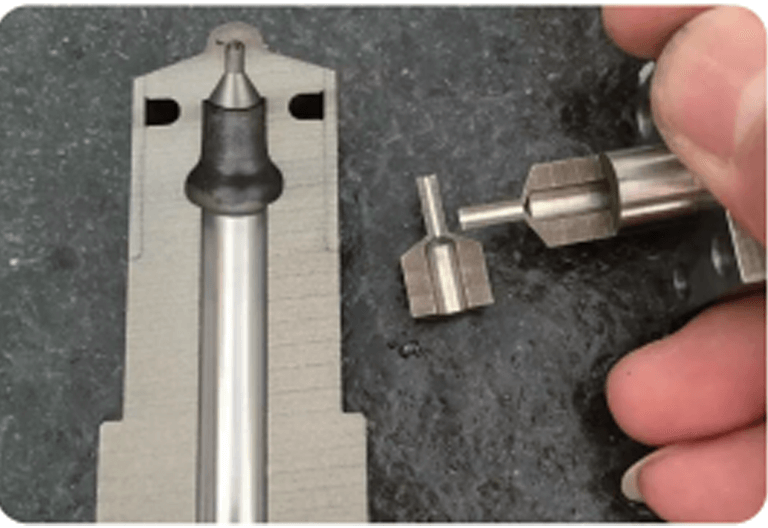

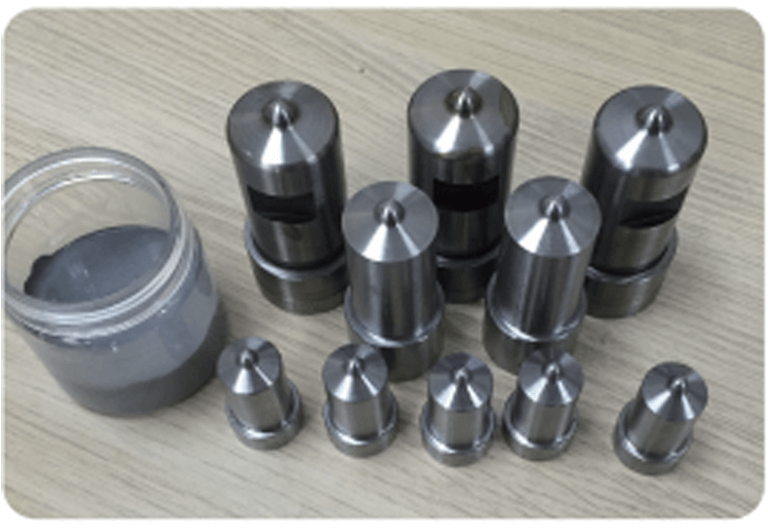

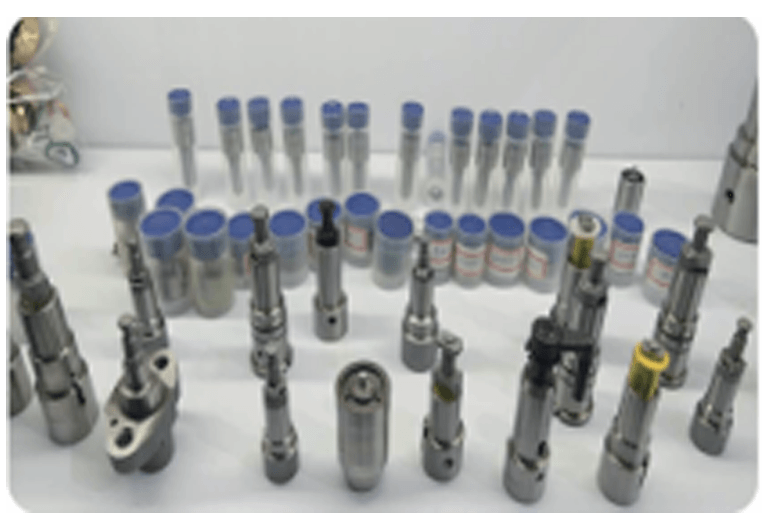

Diesel Nozzle Series (Micro Hole Machine)

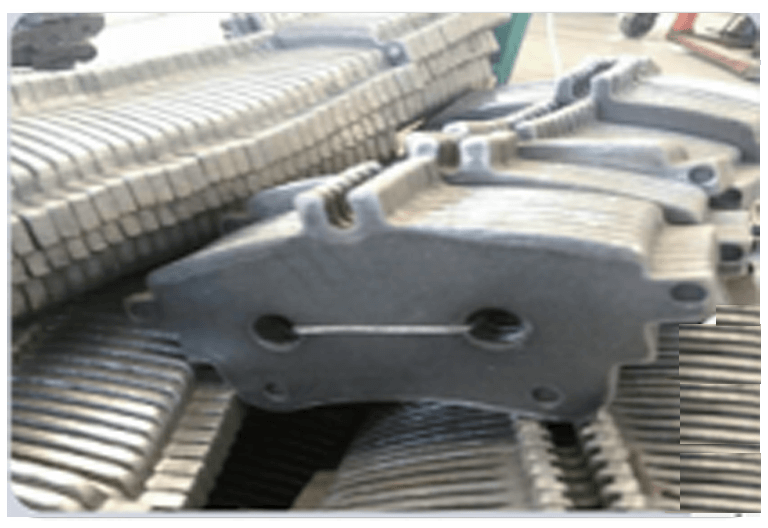

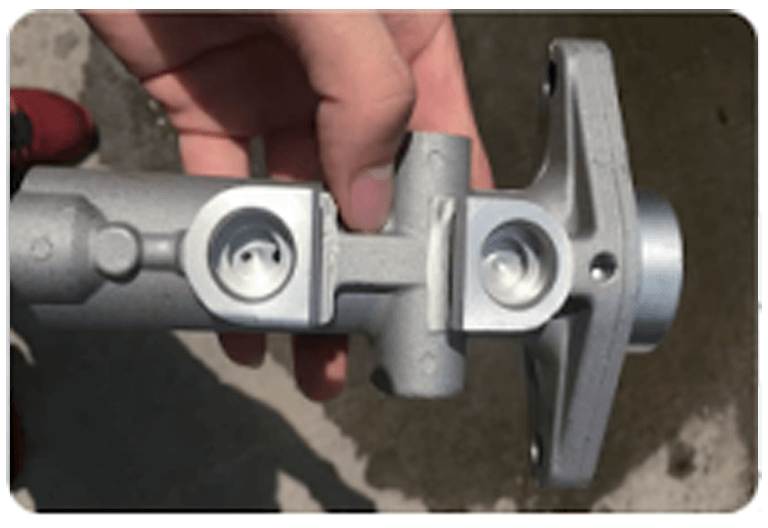

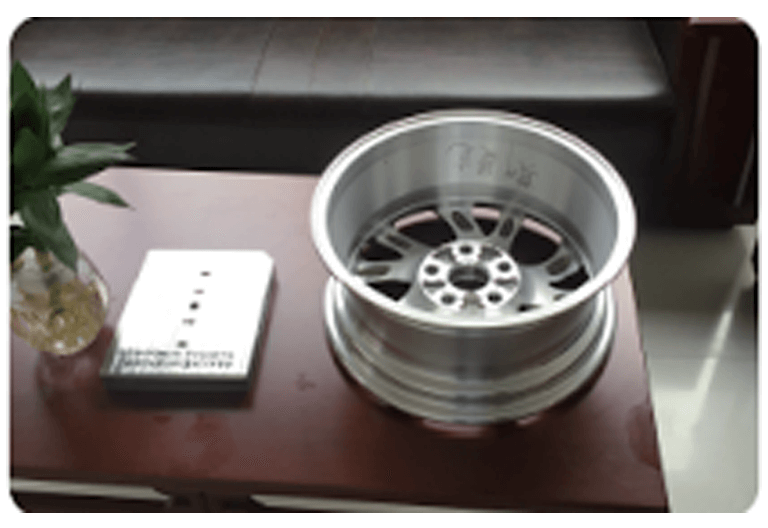

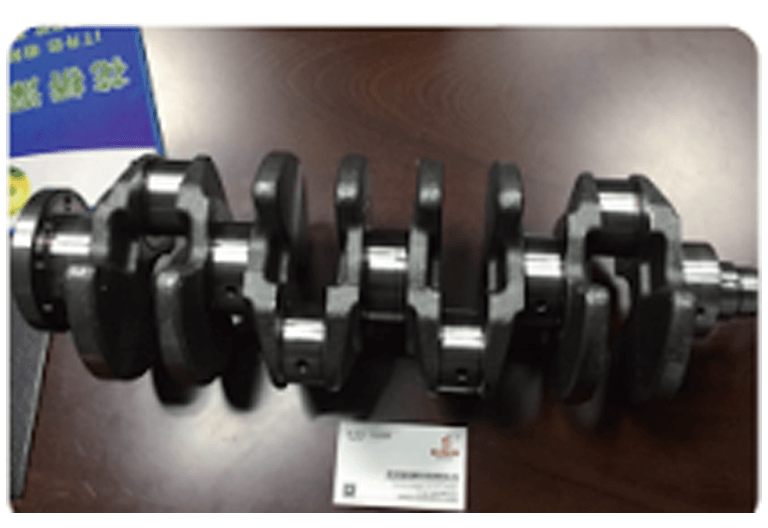

Automotive Industry

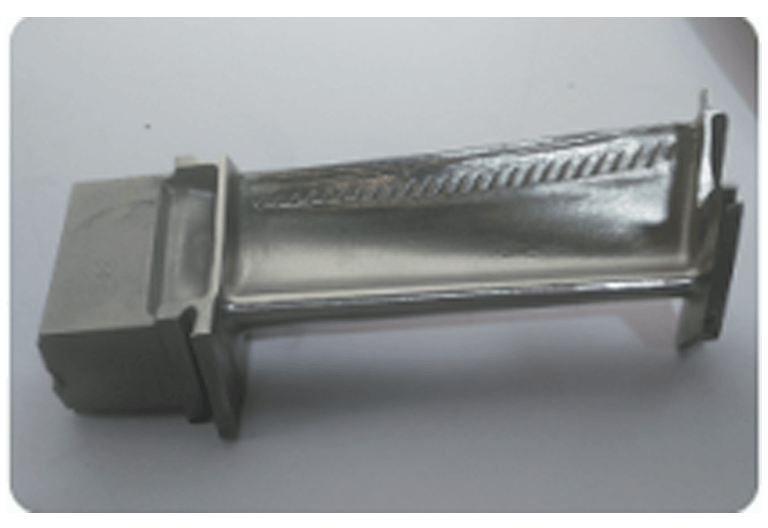

Aerospace Industry

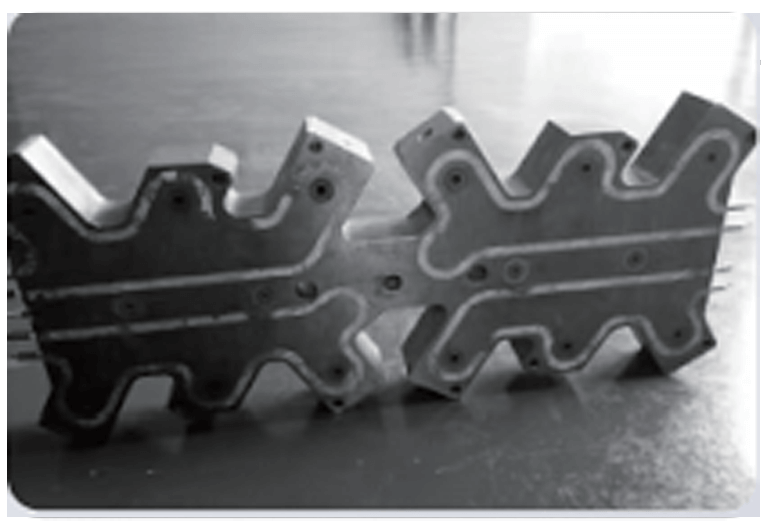

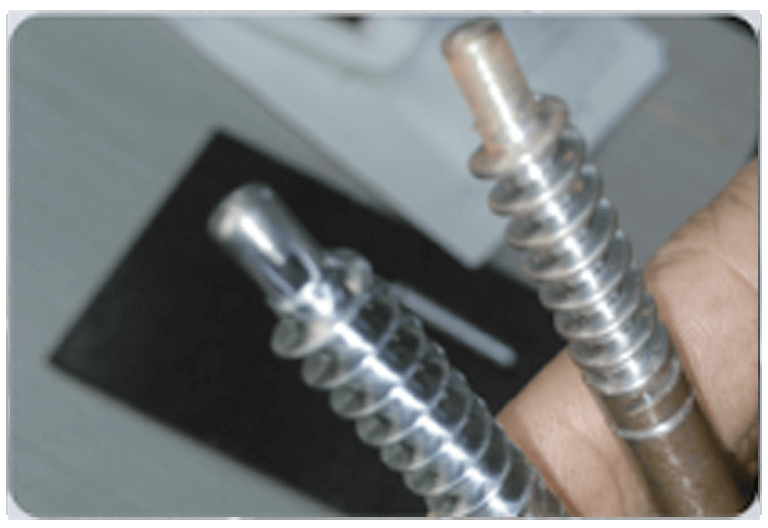

Injection Mold And Plastic Mold Polishing

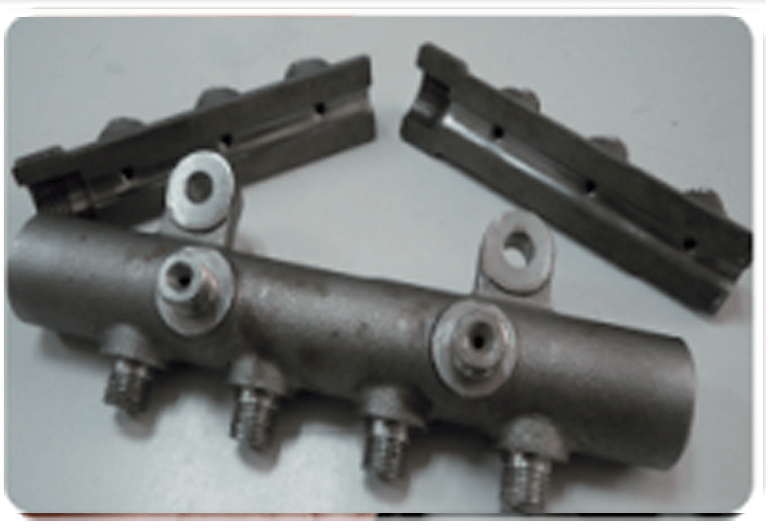

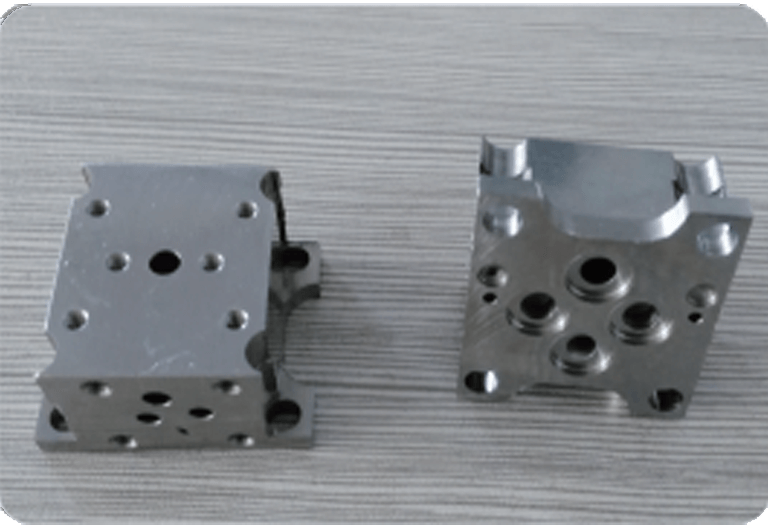

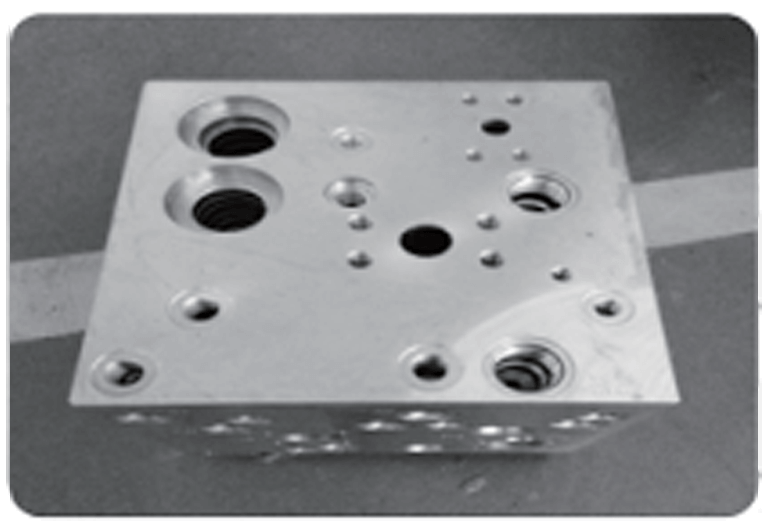

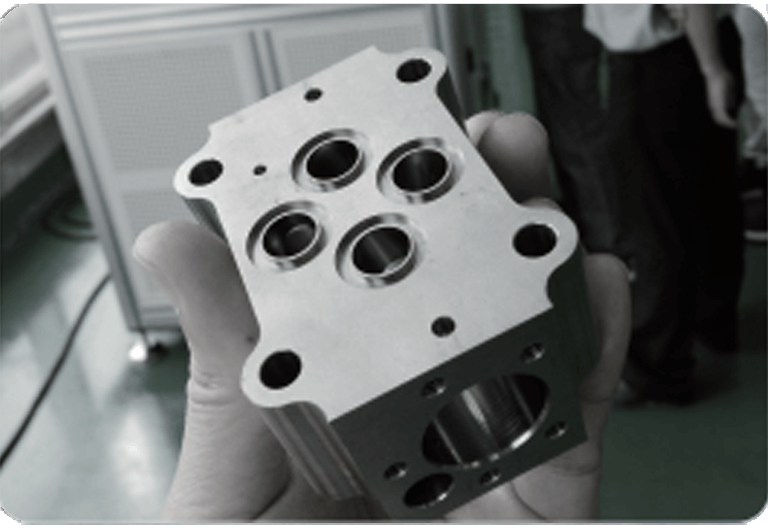

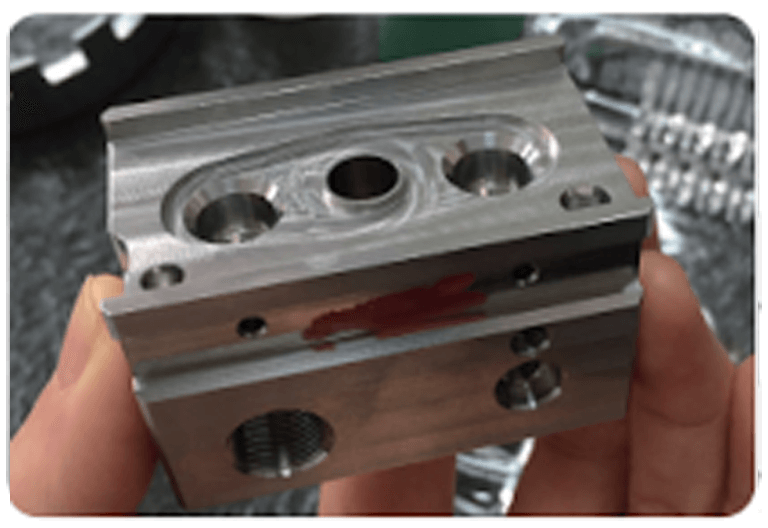

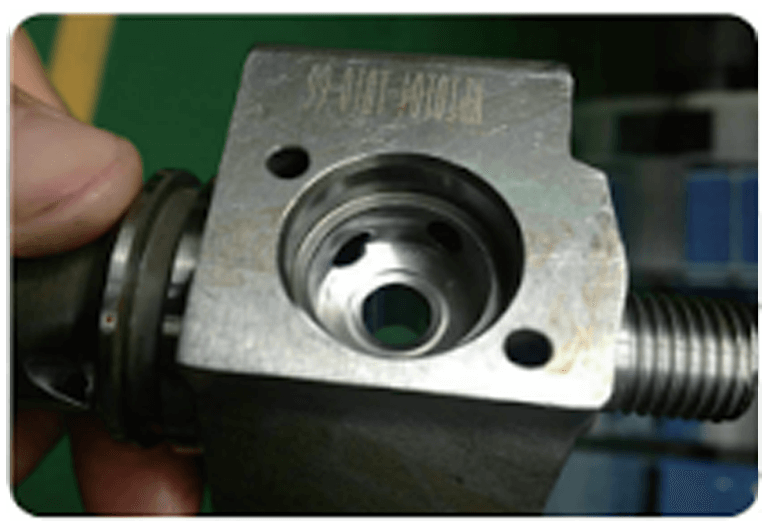

Oil Blocks And Body Cross Hole De-Burring

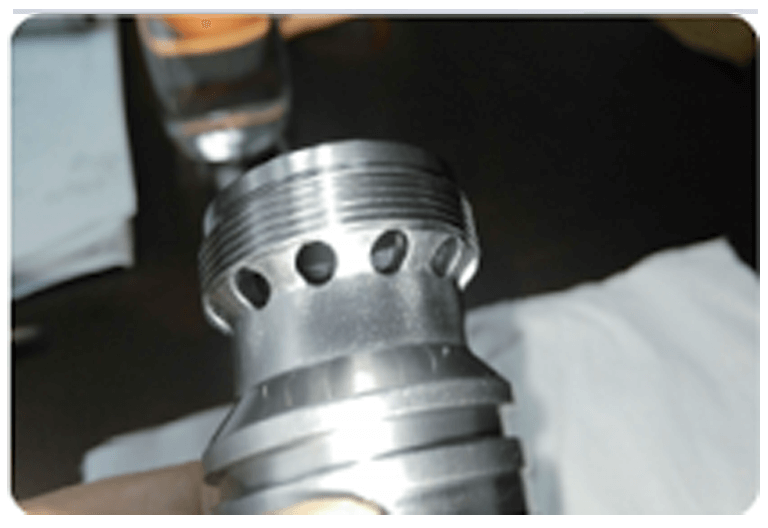

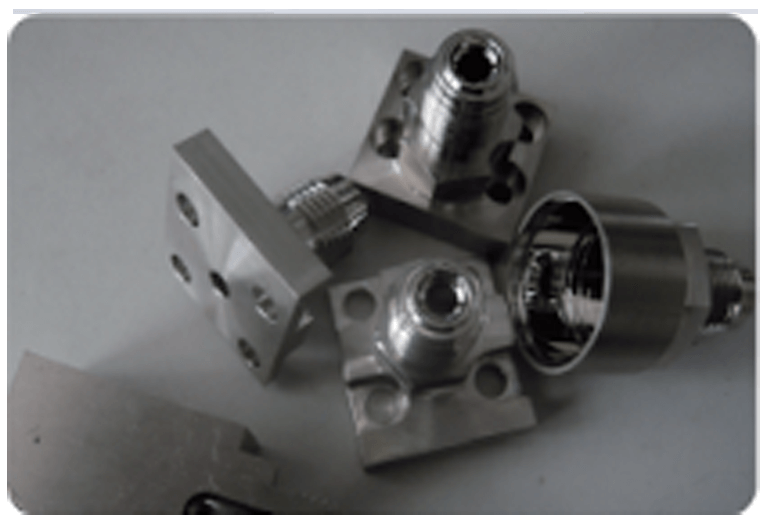

De-Burring Polishing Oil And Gas Valve Bodies

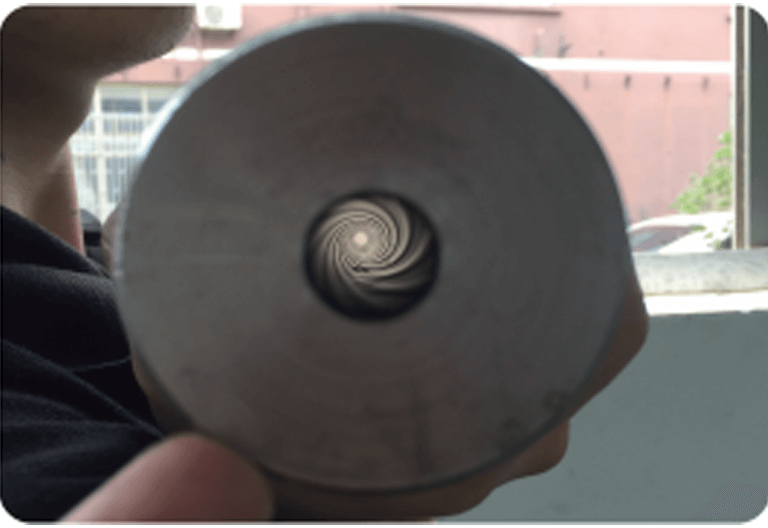

Heat Runner Chamfering And Hot Nozzle Cavity Polishing

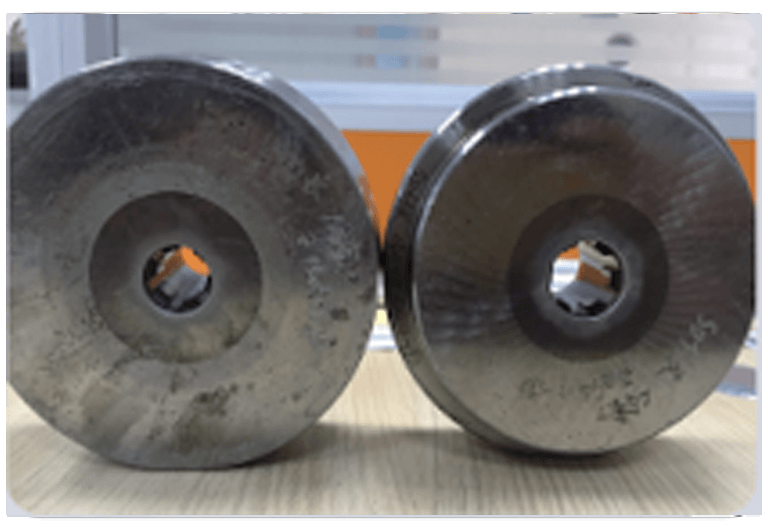

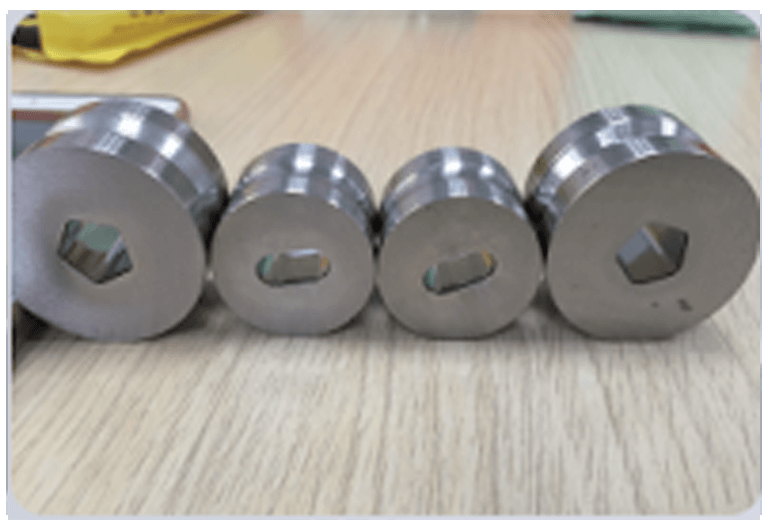

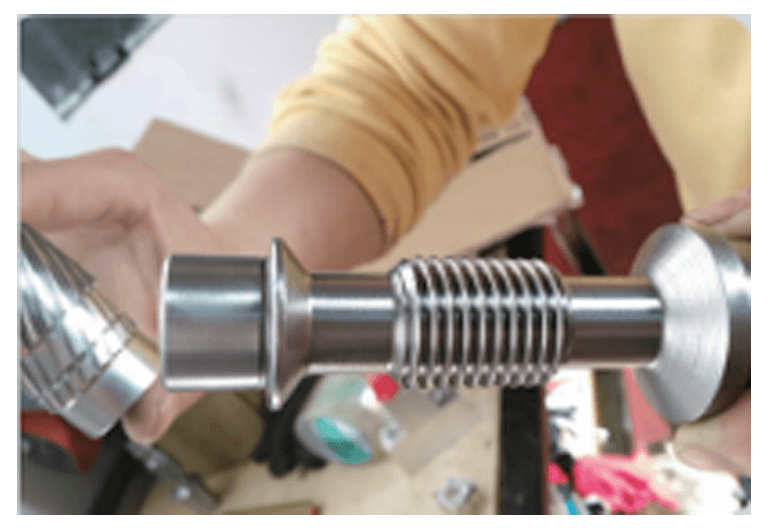

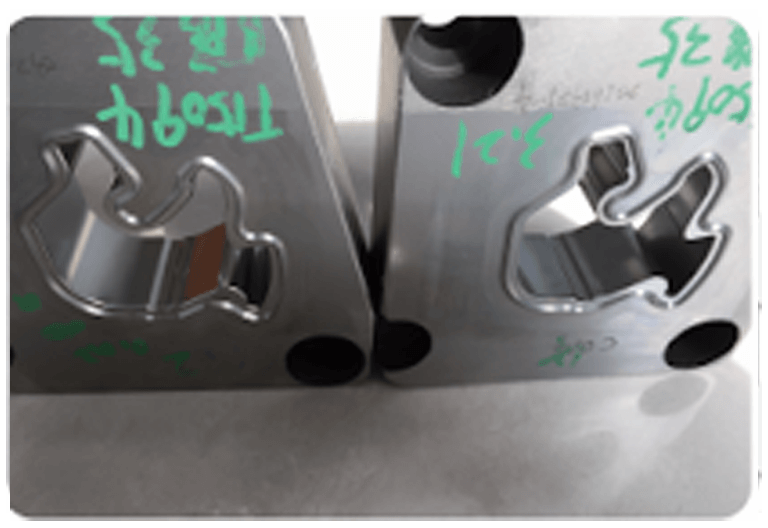

Cold Heading Mould And Die Casting Mould

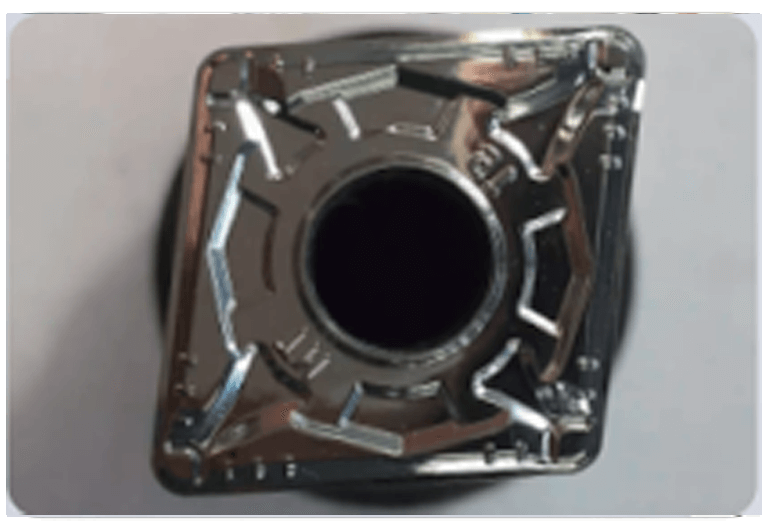

Hard Alloy, Powder Metallurgy Mold Polishing

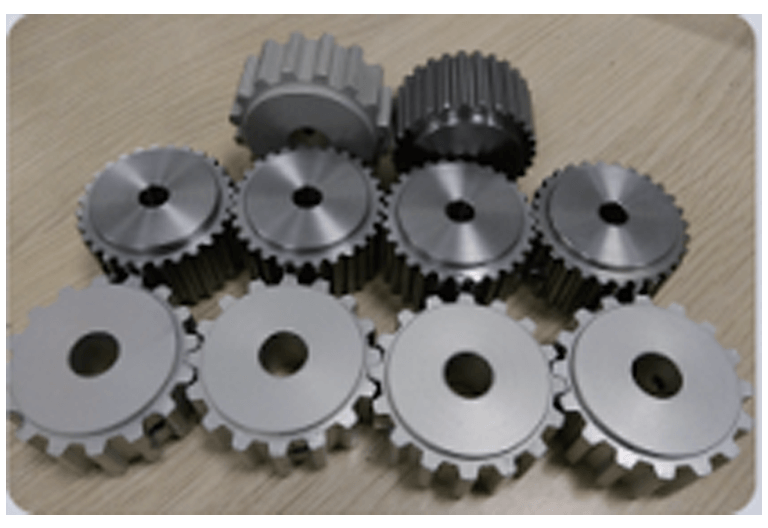

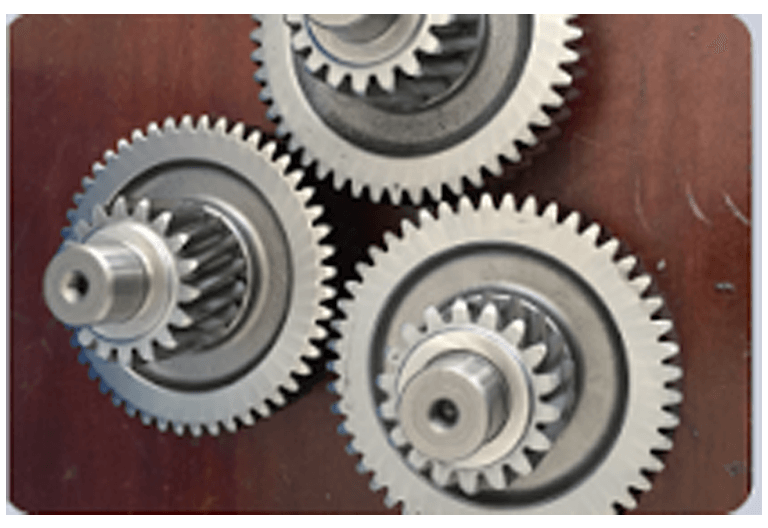

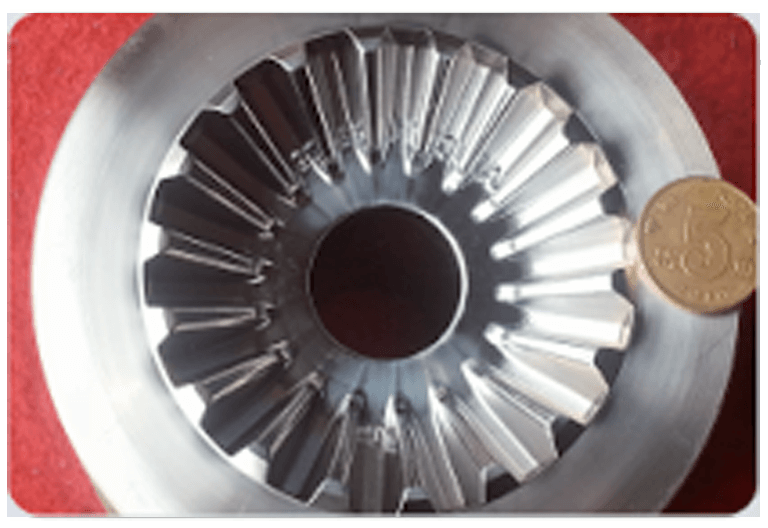

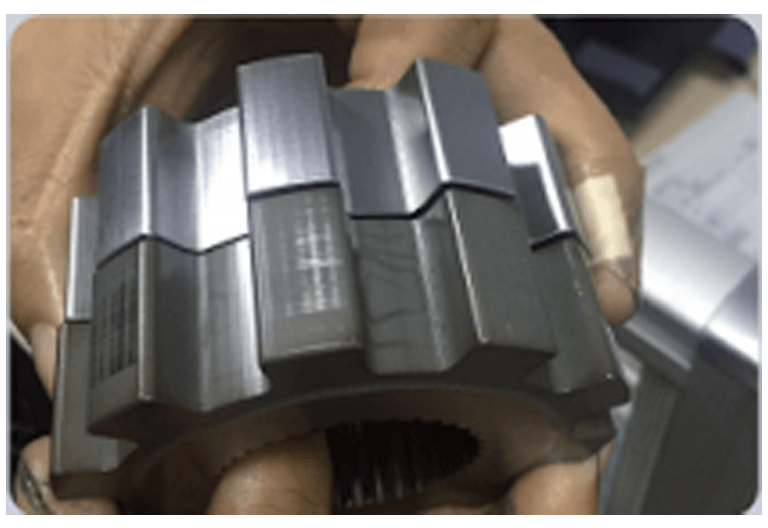

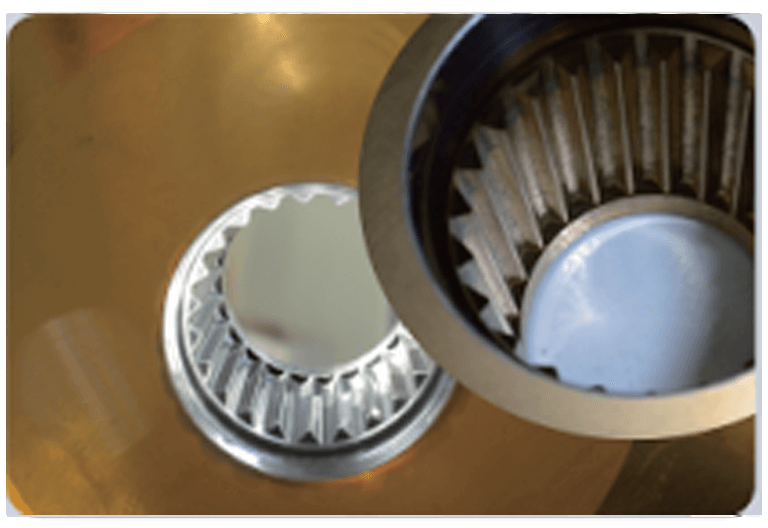

Tooth Shape Polishing And De-Burring

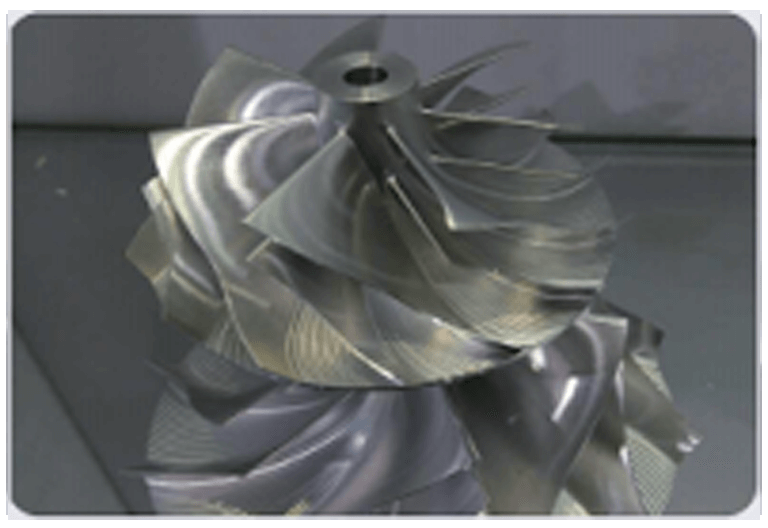

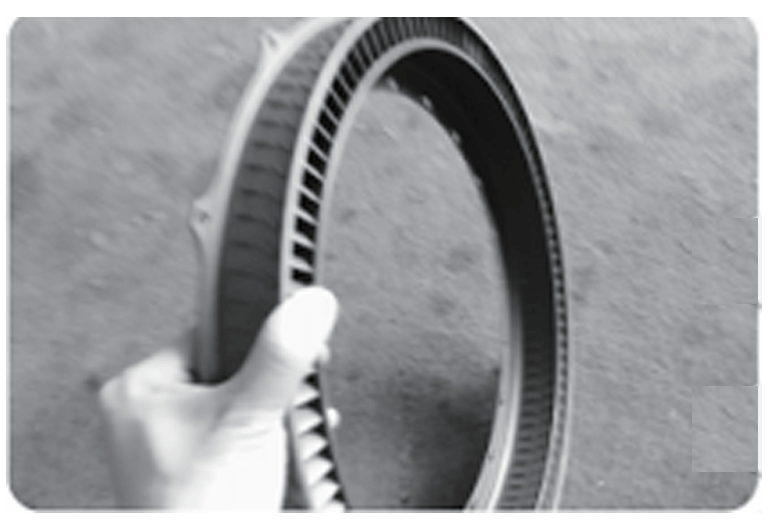

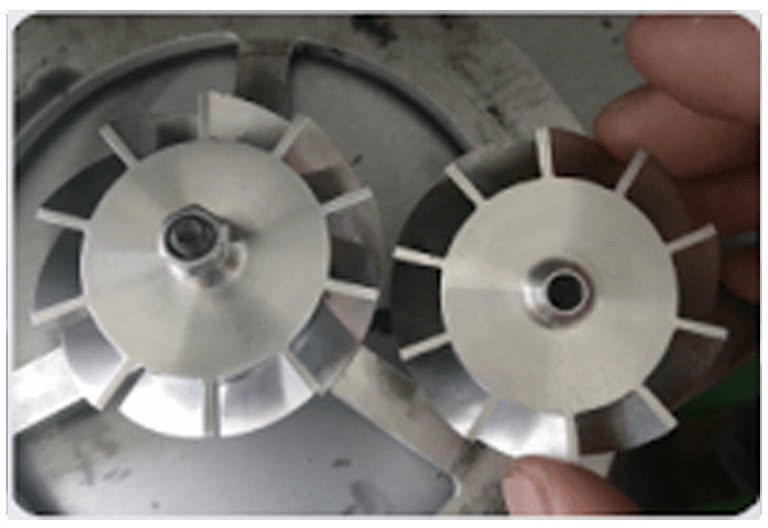

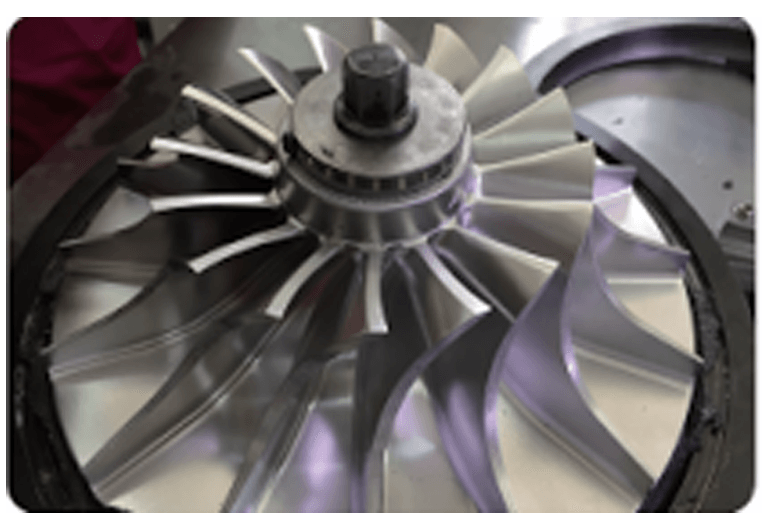

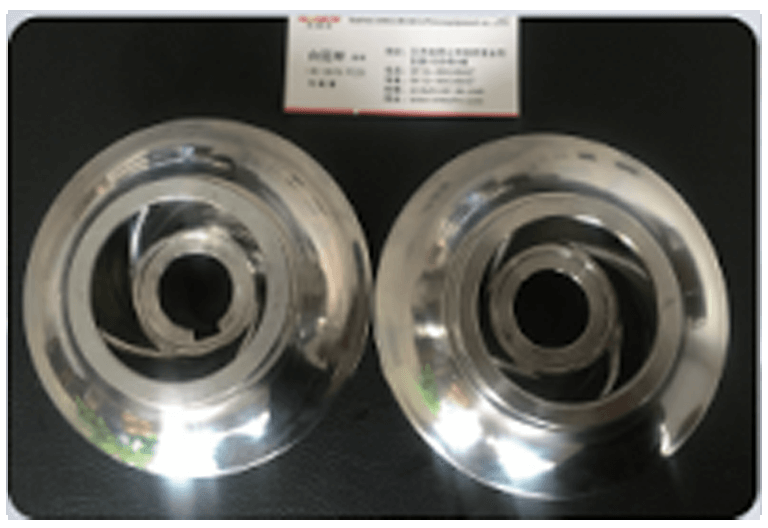

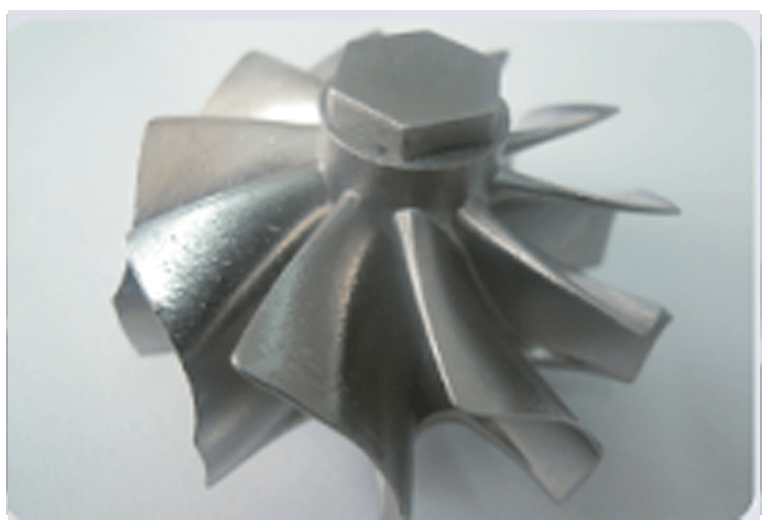

Turbine And Impeller Series
Pharmaceutical Mold

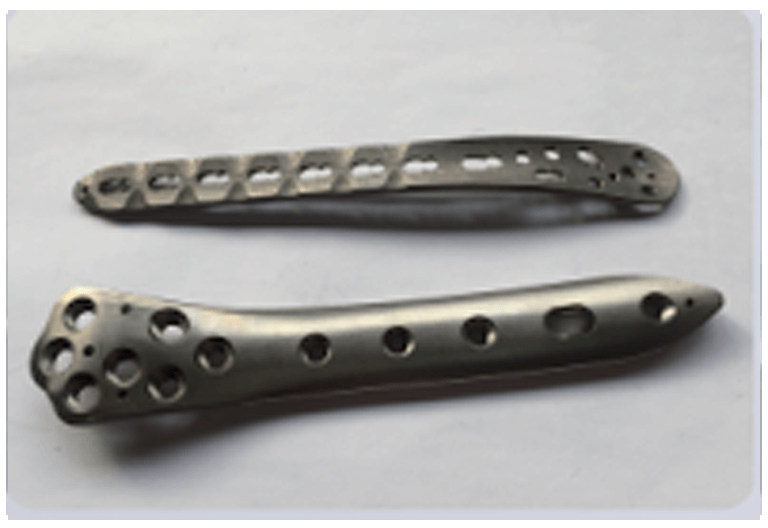

Medical Apparatus And Instruments

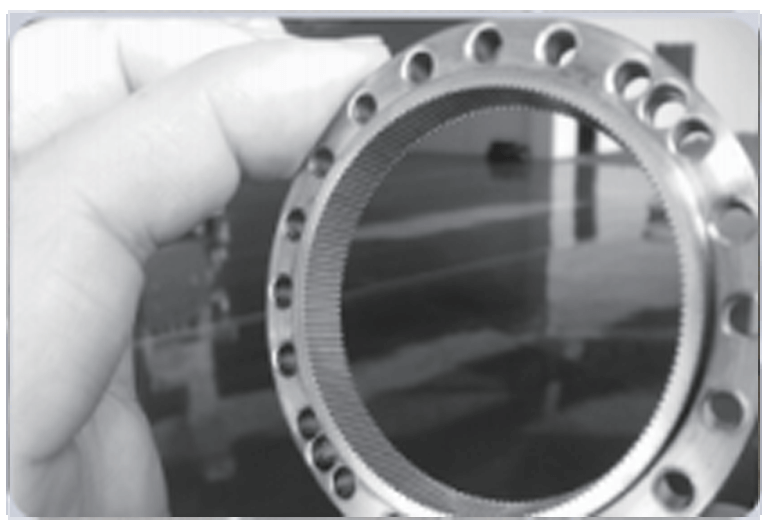

Harmonic Gear Series

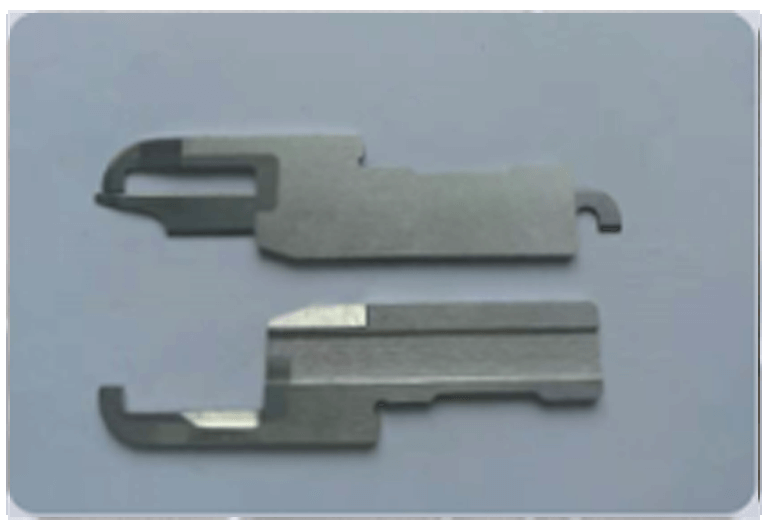

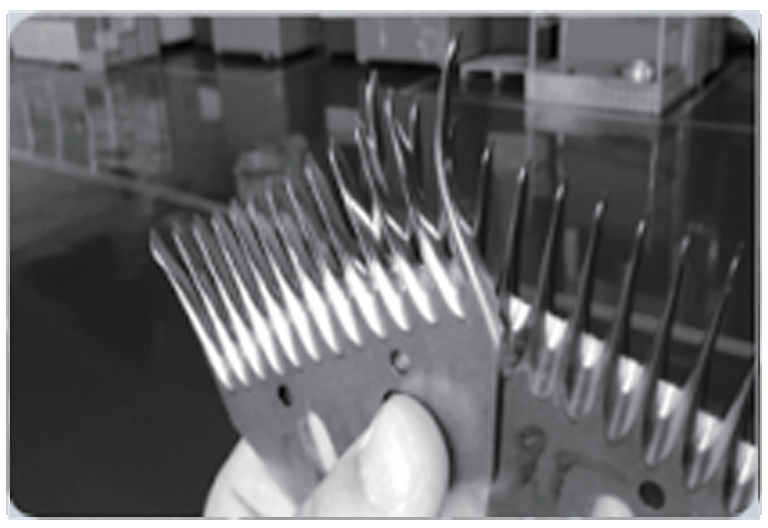

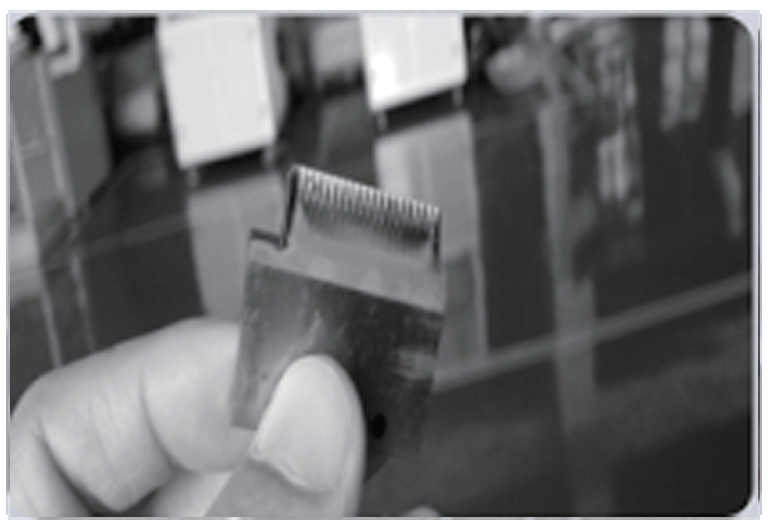

Textile Industry

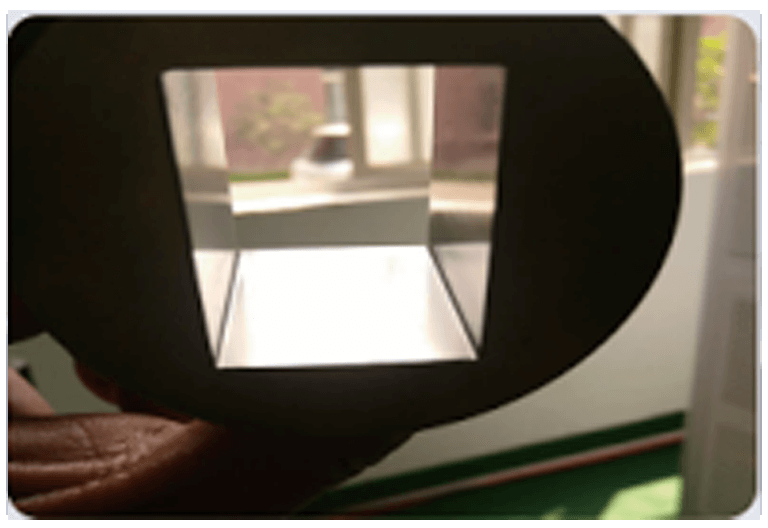

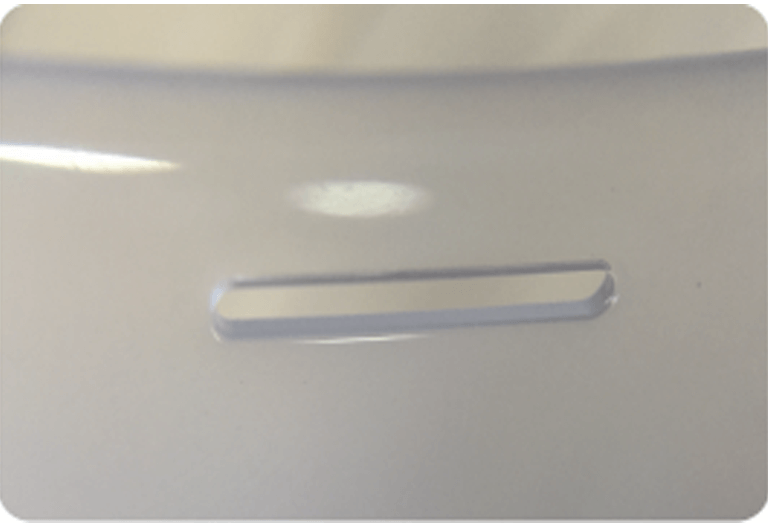

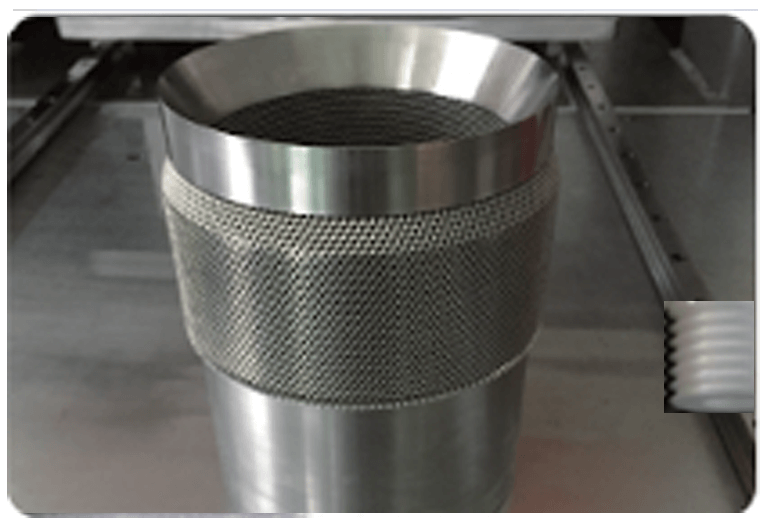

Stainless Steel Tube, 3D Printing Products And Glass Mirror Polishing

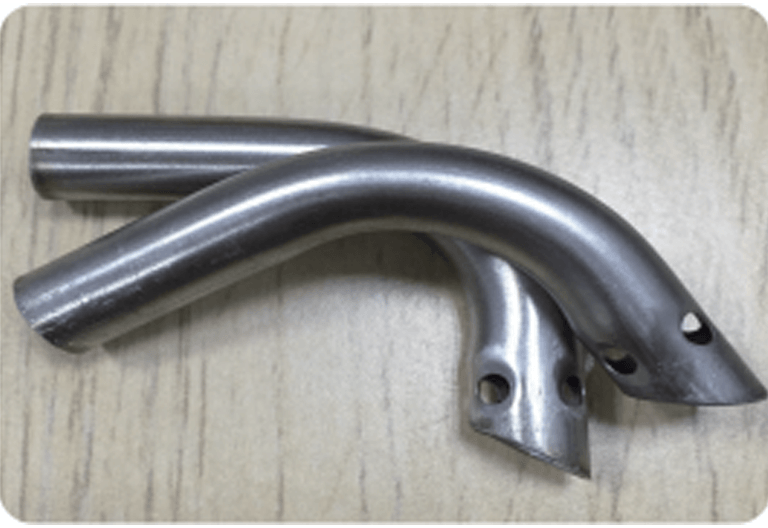

Stainless Steel Parts And Body - Polishing, Chamfering

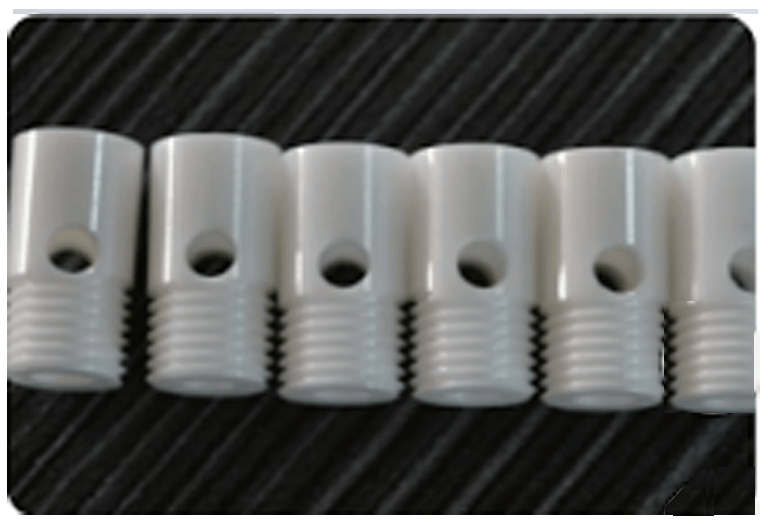

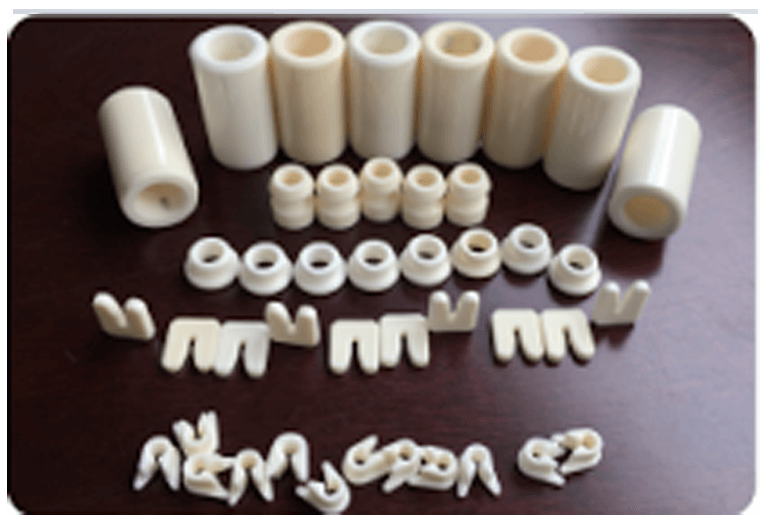

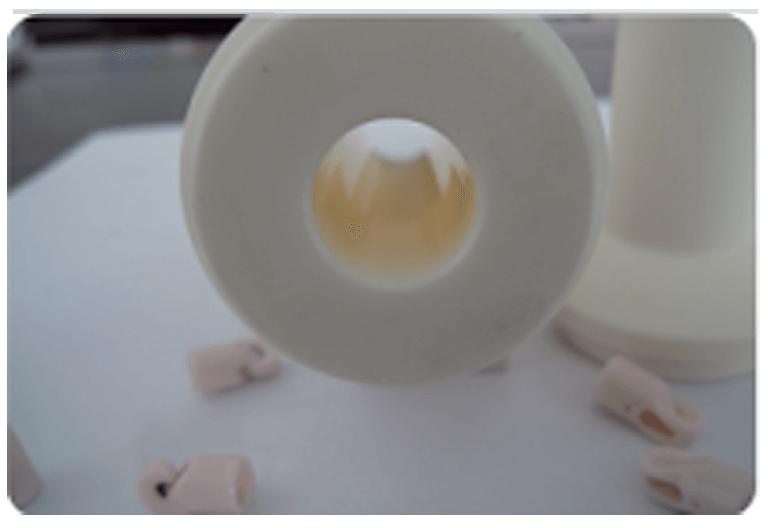

Precision Ceramics, Optical Electronic Device

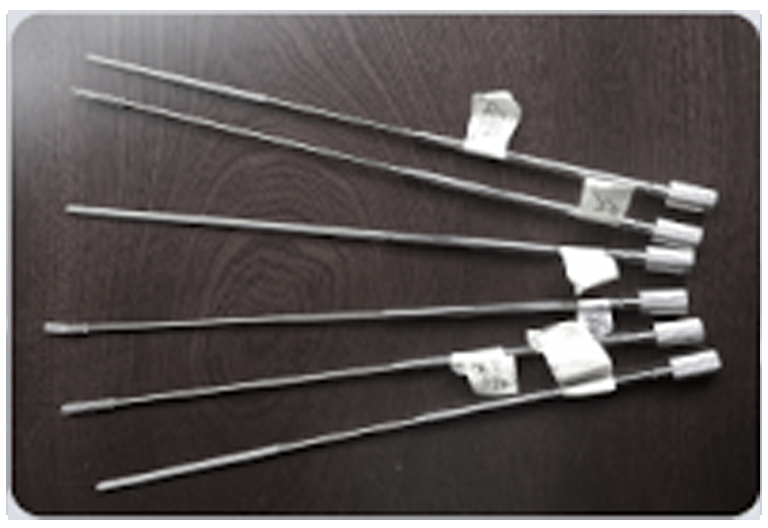

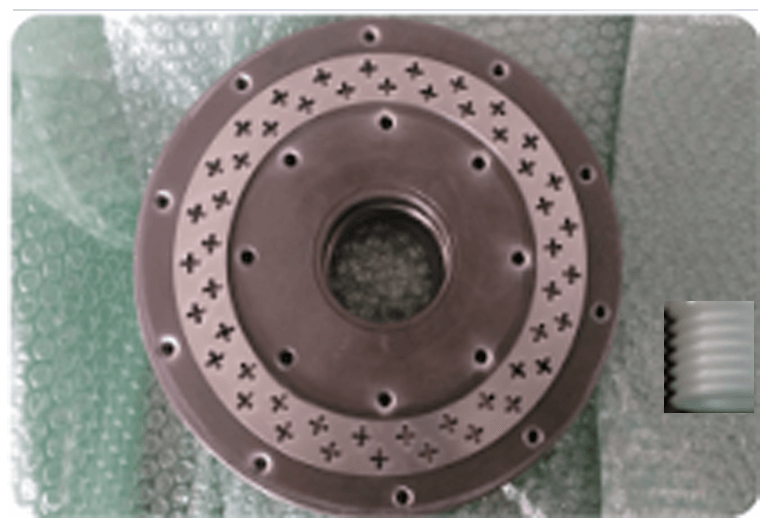

Spinneret Hole De-Burring And Polishing

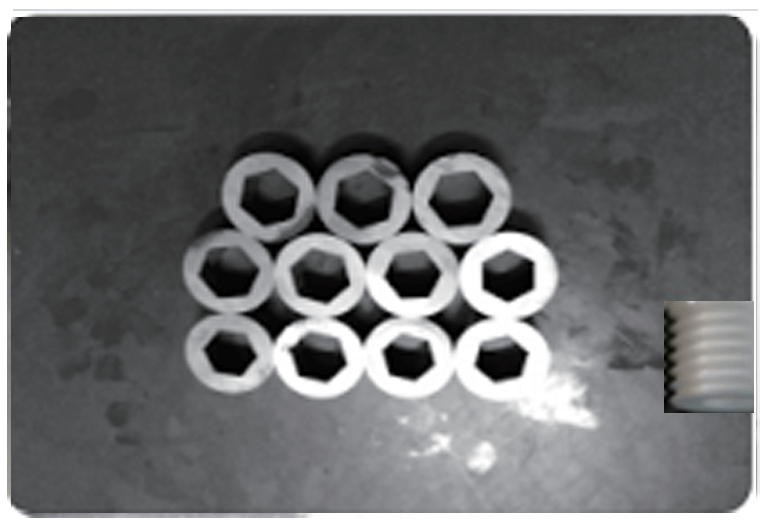

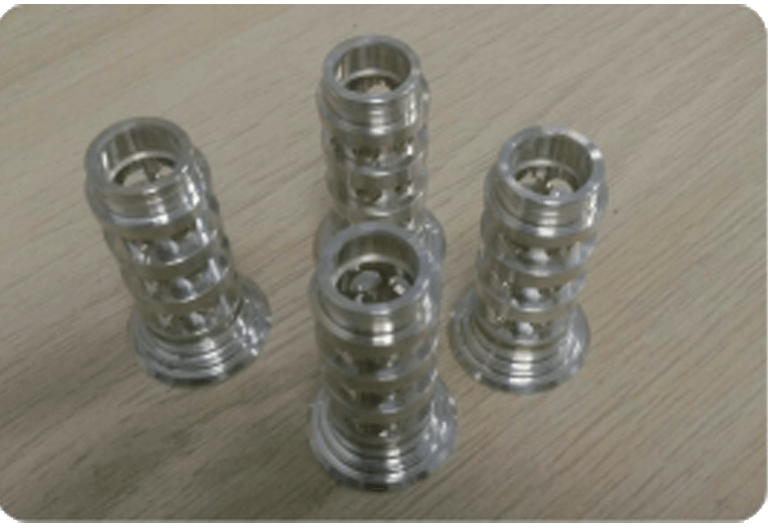

Multi Size Hole And Edge De-Burring And Polishing
